| ผู้ผลิต | STMICROELECTRONICS |
|---|---|
| หมายเลขชิ้นส่วนของผู้ผลิต | X-NUCLEO-OUT04A1สำเนา |
| ระยะเวลานำส่งมาตรฐานของผู้ผลิต | 28 สัปดาห์ |
| รหัสสินค้า | 3929079 |
| หมายเลขชิ้นส่วนของคุณ | |
| เอกสารข้อมูลทางเทคนิค |
อยากได้เพิ่มใช่ไหม
| จำนวน | ราคา (ราคาสินค้าไม่รวม vat) |
|---|---|
| 1+ | THB1,700.130 |
ข้อมูลผลิตภัณฑ์
| ผู้ผลิต | STMICROELECTRONICS |
|---|---|
| หมายเลขชิ้นส่วนของผู้ผลิต | X-NUCLEO-OUT04A1สำเนา |
| ระยะเวลานำส่งมาตรฐานของผู้ผลิต | 28 สัปดาห์ |
| รหัสสินค้า | 3929079 |
| เอกสารข้อมูลทางเทคนิค | |
| Silicon Manufacturer | STMicroelectronics |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M |
| Silicon Core Number | IPS2050H-32 |
| Silicon Family Name | - |
| For Use With | STMicroelectronics STM32 Nucleo Board |
| Kit Contents | Expansion Board IPS2050H-32 |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
ภาพรวมของผลิตภัณฑ์

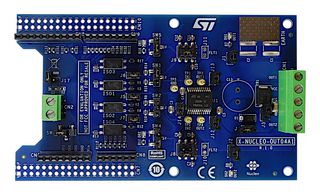

X-NUCLEO-OUT04A1 is an industrial digital output expansion board based on IPS2050H-32 for STM32 Nucleo. The X-NUCLEO-OUT04A1 industrial digital output expansion board for STM32 Nucleo provides a powerful and flexible environment for the evaluation of the driving and diagnostic capabilities of the IPS2050H-32 (dual high-side smart power solid state relay) in a digital output module connected to 5.7A (max) industrial loads. The X-NUCLEO-OUT04A1 interfaces with the microcontroller on the STM32 Nucleo via 5KV optocouplers driven by GPIO pins, Arduino UNO R3 (default configuration) and ST morpho (optional, not mounted) connectors. The expansion board can be connected to either a NUCLEO-F401RE or NUCLEO-G431RB development board. It is also possible to evaluate a system composed by up to four stacked X-NUCLEO-OUT04A1 expansion boards.
- Based on IPS2050H-32 dual high-side switch, which features operating range up to 60V/5.7A
- Low power dissipation, fast decay for inductive loads, smart driving of capacitive load
- Under-voltage lock-out, PSSO24 package
- Application board operating range from 8 to 33V/0 to 5.7A
- Extended voltage operating range (J3 open) up to 60V and green LEDs for output on/off status
- Red LEDs for per-channel diagnostic (overload and overheating) and 5KV galvanic isolation
- Supply rail reverse polarity protection
- EMC compliance with IEC61000-4-2, IEC61000-4-3, IEC61000-4-5
- Compatible with STM32 Nucleo development boards
- Equipped with Arduino UNO R3 connectors
ข้อมูลจำเพาะทางเทคนิค
| Silicon Manufacturer | STMicroelectronics |
|---|---|
| Core Sub-Architecture | Cortex-M |
| Silicon Family Name | - |
| Kit Contents | Expansion Board IPS2050H-32 |
| SVHC | No SVHC (25-Jun-2025) |
| Core Architecture | ARM |
|---|---|
| Silicon Core Number | IPS2050H-32 |
| For Use With | STMicroelectronics STM32 Nucleo Board |
| Product Range | - |
เอกสารทางเทคนิค (1)
ผลิตภัณฑ์ที่เกี่ยวข้อง
พบผลิตภัณฑ์จำนวน4
กฎหมายและปัจจัยแวดล้อม
| ประเทศต้นกำเนิด: ประเทศสุดท้ายที่ดำเนินกระบวนการผลิตที่สำคัญประเทศต้นกำเนิด: | Italy ประเทศสุดท้ายที่ดำเนินกระบวนการผลิตที่สำคัญ |
|---|---|
| หมายเลขพิกัดอัตราภาษี: | 90230080 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| เป็นไปตามข้อกำหนด RoHS: | ใช่ RoHS |
| การใช้สารพาทาเลตตามระเบียบ RoHS: | ใช่ RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| ดาวน์โหลดหนังสือรับรองมาตรฐานของผลิตภัณฑ์ | หนังสือรับรองมาตรฐานของผลิตภัณฑ์ |
| น้ำหนัก (กก.): | .0452 |
