| ผู้ผลิต | STARTECH |
|---|---|
| หมายเลขชิ้นส่วนของผู้ผลิต | ST7200USBMสำเนา |
| ระยะเวลานำส่งมาตรฐานของผู้ผลิต | 6 สัปดาห์ |
| รหัสสินค้า | 3498513 |
| เป็นที่รู้จักกันในชื่อ | GTIN UPC EAN: 0065030837910 |
| หมายเลขชิ้นส่วนของคุณ | |
| เอกสารข้อมูลทางเทคนิค |
อยากได้เพิ่มใช่ไหม
| จำนวน | ราคา (ราคาสินค้าไม่รวม vat) |
|---|---|
| 1+ | THB5,461.640 |
| 5+ | THB5,279.580 |
ข้อมูลผลิตภัณฑ์
| ผู้ผลิต | STARTECH |
|---|---|
| หมายเลขชิ้นส่วนของผู้ผลิต | ST7200USBMสำเนา |
| ระยะเวลานำส่งมาตรฐานของผู้ผลิต | 6 สัปดาห์ |
| รหัสสินค้า | 3498513 |
| เป็นที่รู้จักกันในชื่อ | GTIN UPC EAN: 0065030837910 |
| เอกสารข้อมูลทางเทคนิค | |
| No. of Ports | 7Ports |
| Hub Style | Bus, Self Powered |
| Product Range | - |
| SVHC | No SVHC (16-Jan-2020) |
ภาพรวมของผลิตภัณฑ์

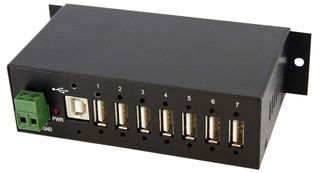

ST7200USBM is a 7 port metal industrial USB-A hub with ESD protection & 350W surge protection. It gives user the scalability user need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments. This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving users flexibility to power the hub as required, based on user own power input capabilities. Perfect for factory environments, the rugged hub also supports wide operating temperature range and offers surge and ESD protection to each USB port, which can help prevent damage to user connected devices. Designed for a high volume of connections, this robust USB 2.0 hub offers 7 connection ports for connecting more USB devices and peripherals.
- Expand USB connectivity, provides seven USB 2.0 ports from a single USB connection
- Wide operating temperature range from 0 to 55°C, ideal for industrial environments
- Offers flexible, wide-range power input with a 7-24V DC terminal block
- Protects user connected devices with ±15kV Air and ±8kV Contact ESD protection
- Surge protection of 350W on the downstream and upstream USB ports
- USB 2.0 interface with up to 480Mb/s maximum data transfer rate
- Connections: 7x USB-A, 1x USB-B, 1x terminal block (2 wire)
- Durable steel housing with built-in mounting bracket or included DIN rails for flexible installation
- 2 year manufacturer warranty and free lifetime technical support
เนื้อหา
USB 2.0 hub, DIN rail mounting bracket x 2, 1.8m USB-B w/screw lock to USB-A cable, Screw kit, Instruction manual.
ข้อมูลจำเพาะทางเทคนิค
| No. of Ports | 7Ports |
|---|---|
| Product Range | - |
| Hub Style | Bus, Self Powered |
|---|---|
| SVHC | No SVHC (16-Jan-2020) |
เอกสารทางเทคนิค (1)
ตัวเลือกสำหรับ ST7200USBM
พบผลิตภัณฑ์จำนวน4
กฎหมายและปัจจัยแวดล้อม
| ประเทศต้นกำเนิด: ประเทศสุดท้ายที่ดำเนินกระบวนการผลิตที่สำคัญประเทศต้นกำเนิด: | Taiwan ประเทศสุดท้ายที่ดำเนินกระบวนการผลิตที่สำคัญ |
|---|---|
| หมายเลขพิกัดอัตราภาษี: | 84718000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| เป็นไปตามข้อกำหนด RoHS: | Y-Ex RoHS |
| การใช้สารพาทาเลตตามระเบียบ RoHS: | ใช่ RoHS |
| SVHC: | No SVHC (16-Jan-2020) |
| ดาวน์โหลดหนังสือรับรองมาตรฐานของผลิตภัณฑ์ | หนังสือรับรองมาตรฐานของผลิตภัณฑ์ |
| น้ำหนัก (กก.): | .49 |
