TCSD-10-D-06.00-01-N

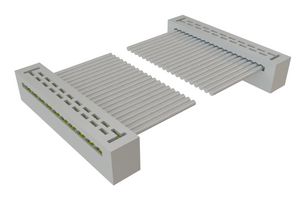

The TCSD-10-D-06.00-01-N from Samtec is a 2.00mm (0.0787") pitch, double ended TCSD series Tiger Eye IDC ribbon socket assembly with 20 contacts. This socket strip mates with Samtec TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM (-SR), ZSTMM series connectors. It complies with UL E111594 standard. Accepts lead size from 0.48mm (0.019inch) to 0.53mm (0.021inch) and insertion depth ranges from 2.8mm (0.113inch) to 3.17mm (0.125inch).

• High reliability Tiger Eye contacts
• Notch polarisation
• Assembled length is 6inch
• Current rating is 2.8A per pin (1 pin powered per row) (TCSD/STMM)
• 28AWG, 7/36 stranded, tinned, copper wire with gray PVC insulator
• Black glass filled polyester insulator
• Operating temperature range from -40?C to +105?C
• Contact resistance is 15mohm
• Beryllium copper (BeCu) contacts with 30?" (0.76?m) gold plating on contact area

การใช้งาน

Industrial
