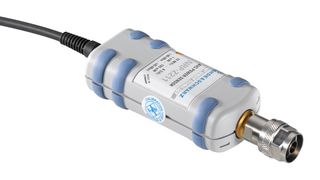

NRP-Z211

The NRP-Z211 from Rohde & Schwarz is a two-path diode power sensors. The two-path diode power sensors use the tried and tested technology of the three-path diode power sensors. With two overlapping diode paths measured in parallel and a wide dynamic range of 80dB, the power sensors feature high measurement accuracy and speed. It combines all key characteristics relevant for their use in production. They are cost-effective, fast, precise and USB-capable. These sensors support the same measurement functions as the R&S NRP‑Z11/R&S NRP‑Z2x/R&S NRP‑Z31 three-path diode power sensors and offer the best price/performance ratio in their class.

• Measurement range from -60dBm to +20dBm (1nW to 100mW)
• Frequency range from 10MHz to 8GHz
• N connector
• Best price/performance ratio in its class
• Operation with R&S NRP2 base unit or via USB on a Laptop/PC
• 80dB dynamic range for CW and modulated signals
• Two-path diode power sensor with enhanced inter range performance
• Continuous average, burst average, timeslot average, time gating and trace mode supported
• Automatic burst detection and acquisition

การใช้งาน

Test & Measurement
