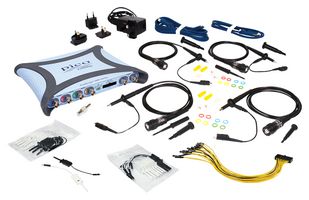

PICOSCOPE 5464E MSO

PICOSCOPE 5464E MSO is a PicoScope 5000E series, 4-channel, 16bit USB MSO. It is the first four-channel oscilloscope in class to combine 16bit resolution with a low noise floor and high dynamic range, enabling accurate measurement of low-level signals. Equipped with high-performance ADCs on all four channels, it can capture subtle millivolt-level transitions, power supply ripple, distortion, and other low-amplitude signals with exceptional precision, making it ideal for detailed analogue system analysis and testing.

• 4 analogue channel and 16 digital channel, 200MHz bandwidth
• 16bit mode, 2.5GS/s sampling, 1GS capture memory, 1.75ns rise time
• 22µV RMS noise floor at 20MHz enables accurate low-level signal measurement
• > 73dB SFDR and exceptional bandwidth flatness to trust every measurement, from DC to full bandwidth
• Advanced triggering includes edge, pulse width, runt, logic and interval triggers
• Decodes I²C, SPI, UART, CAN, LIN, FlexRay, USB and many other protocols
• 5 year warranty
• Dimension is 221 x 173 x 30mm (8.70in x 6.81in x 1.18in)
