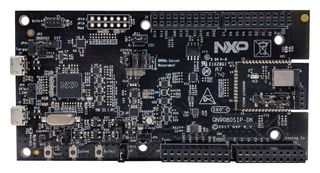

QN9080SIP-DK

QN9080SIP-DK is a development kit which is highly extensible platform for application development of QN9080SIP. This development kit is enabled by QN9080SIP built on QN9080 Bluetooth MCU and NT3H2211 NTAG® supporting Bluetooth 5, generic FSK and NFC. The QN9080SIP also integrates 32MHz and 32kHz crystals, RF matching and 2.4GHz antenna. The QN9080SIP-DK kit contains a development board, a USB dongle and an NFC antenna. The development board integrates buttons, switches, piezo buzzer, LEDs for easy-use, provides SWD/JTAG and USB interface for debugging and is form-factor compatible with the Arduino® pin layout for more expansion options. The USB dongle is a Bluetooth device powered by QN9080.

• Fully certified module supporting Bluetooth and NFC
• Arduino® interface
• CMSIS-DAP (default) and the J-Link interface for debugging
• UART/I2C/SPI/USB connectivity support
• Full MCUXpresso support
• Reuse all QN9080 tools
• PCB inverted NFC antenna
• USB dongle for interaction with DK board

เนื้อหา

QN9080SIP-DK development board, QN9080 USB dongle, NFC antenna, USB cable.
