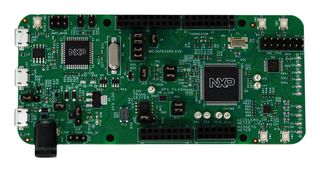

MC56F83000-EVK

MC56F83000-EVK is an ultra-low-cost development platform for digital signal controller MC56F83xxx MCU. It is form factor compatible with the Arduino™ R3 pin layout and features ROM bootloader supporting SCI, IIC and CAN. Peripherals enable rapid prototyping, including a 6-axis digital accelerometer and magnetometer to create full eCompass capabilities, 6 buffered LEDs indicating PWM signals, 4 user LEDs, 4 user push-buttons for direct interaction an SPI interfaced flash memory, a high speed CAN transceiver circuit, a USBOTG connector and a USB to UART bridge circuit. The MC56F83000-EVK features onboard OSBDM circuit enabling debugging and programming with CodeWarrior.

• Flexible power supply option
• USB interface with micro-AB USB connector
• Virtual serial port, CAN interface
• Easy access to MCU input/output through Arduino™ R3 compatible I/O connectors
• FXOS8700CQ accelerometer and magnetometer
• 14-pin JTAG port to connect with standalone programmer
• ROM bootloader supporting SCI, IIC and CAN
