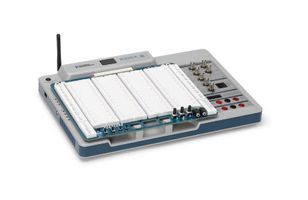

785578-01

785578-01 is a NI ELVIS III project-based learning solution that combines instrumentation, embedded design, and web connectivity for engineering fundamentals and system design. It provides a comprehensive teaching solution for engaging students in hands-on labs. Each laboratory solution includes lab material and complete experiments developed by experts in industry and education. With its hands-on approach, NI ELVIS helps educators teach students practical, experimental engineering skills. Built on the concept of teamwork, this solution connects students to their experiments, which enables them to collaborate using the same technology in over 35,000 companies worldwide. It combines the precision and accuracy of seven benchtop instruments with the speed and customization of industrial embedded controllers in one single platform. Students can use its easy, prebuilt interfaces to customize at a level not available in any other educational laboratory equipment.

• Seven hardware instruments plus control I/O containing 16 AI, 4 AO, and 40 DIO
• 4-channel, 100MS/s (400MS/s single channel), 50MHz oscilloscope with 14bit resolution
• 16-channel, 100MS/s logic analyser/pattern generator
• 16-channel, 1MS/s analogue input with 16-bit resolution
• 40 DIO lines individually programmable as input, output, PWM, or digital protocols
• Xilinx Zynq-7020 processor FPGA
• LabVIEW, Python, C, Simulink programming Language Support
• Windows, Mac, Web SFP support
