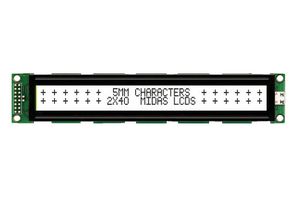

MC24005A6W-FPTLW-V2

The MC24005A6W-FPTLW-V2 from Midas is a chip on board LCD alphanumeric module. The overall size of module is 182mm x 33.5mm x 14mm (W x H x D), character size is 3.2mm x 5.55mm (W x H), character pitch is 0.5mm x 0.4mm (W x H).

• Input voltage range from 4.7V to 5.5V
• Supply current is 1.6mA at Vdd = 3V
• 40 character number per line & 2 character line
• Character height is 5mm
• FSTN transflective STN
• LED white backlight
• 6 "o" clock viewing direction
• SPLC780D controller
• Operating temperature range from -20°C to 70°C
• Display duty 1/16, Driving bias 1/5
• White LED backlight
• Preferred view angle - 6 o'clock
• -20 to +70°C wide operating temperature range
• 16 way through hole DIL (side, left, 2x8) connection, 2.54mm pitch
