DM160214

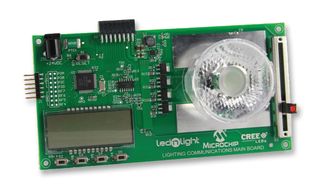

DM160214 is a main board of lighting communications development platform. It uses a PIC16F1947 microcontroller to run the user interface, LCD control, 4 colour LED drive and the various communications protocols. By changing the firmware and plug on the adapter, a number of lighting communication protocols can be implemented, such as DMX512A and DALI.

• PIC16F1947 microcontroller
• Cree XLamp MC-E colour LED
• Gaggione Led n light 40mm colour mixing optic
• Analogue drive of LEDs
• 6 digit, 7 segment LCD display
• Four switches for input and slider potentiometer
• 5V buck power supply (9VDC to 24VDC input)
• PICkit programming port
• Lighting communications adapter port
• Eight I/O pins brought to pads

การใช้งาน

LED Lighting

บันทึก

90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
