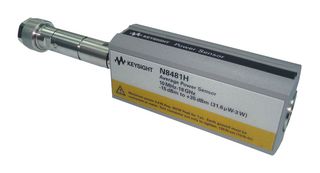

N8481H

N8481H is a thermocouple power sensor with EEPROM feature. This device is a high accuracy thermocouple power sensor that allows direct measurement of RF or microwave power through the heating effect it has on a terminating load. All calibration data for the power sensor is stored in EEPROM and is downloaded to the power meter when the sensor is connected.

• EEPROM to store cal factors eliminates manual entry
• Wide frequency range from 10MHz to 18GHz
• Wide dynamic range from -15 to +35dBm
• Best-in-class power linearity of less than 1%
• Excellent SWR of mismatch uncertainty & highly accurate power repeatability
• Accurate calibration and traceability to US national institute of standards and technology
• SCPI codes compatible with 8480 series (option CFT)
• Dimension is 38 mm W x 30 mm H x 174 mm L

เนื้อหา

Standard power sensor, Certificate of calibration.
