HD300PWRA

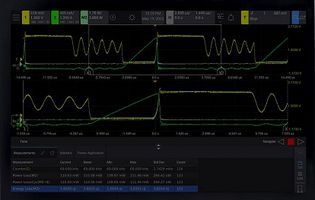

HD300PWRA is a power analysis software for the InfiniiVision HD3 series oscilloscope. It enables a broad range of automated power supply characterization measurements including critical frequency response measurements such as power supply rejection ratio (PSRR) and control loop response. The power software package for Keysight’s InfiniiVision HD3 Series oscilloscope enables a broad range of automated power supply characterization measurements including critical frequency response measurements such as power supply rejection ratio (PSRR) and control loop response.

• Power quality: real power, apparent power, reactive power, power factor, crest factor, phase angle
• Current harmonics (based on IEC 61000-3-2 up to the 40th harmonic), inrush current
• Switching measurements: Rds-on and Vce-sat, switching loss, slew rate, modulation
• Output measurements: output ripple, turn-on / turn-off time, transient response time, efficiency
• Frequency response measurements- power supply rejection ratio– bode, control loop response – bode
