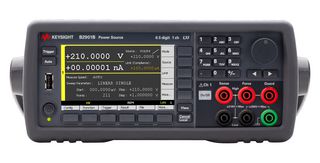

B2901B

B2901B precision source/measure unit is a compact and cost-effective bench-top Source/Measure Unit (SMU) with the capability to source and measure both voltage and current. It is ideal for a wide variety of IV (current versus voltage) measurement tasks that require both high resolution and accuracy.

• 5.5 digit, single channel low noise power source
• Integrated 4-quadrant sourcing and measuring capabilities
• Measurement range: ±210V, ±3A (DC), ±10.5A (pulsed)
• 100fA resolution, single channel
• 4.3” TFT colour display (480x272, with LED backlight) with keypads and rotary knob
• PC-based control software
• Supports both conventional and default SCPI commands
• Small form factor with USB2.0, LAN, GPIB and digital I/O interfaces

เนื้อหา

Precision source/measure unit, Power cable, USB cable, Quick reference (English).

บันทึก

The B2901B model will be discontinued effectively from 31st May 2026. For all new designs, it is recommended to use the B2901C model as the replacement.
