34401A

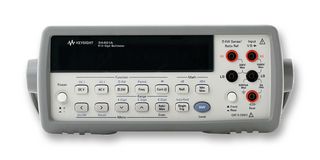

The Keysight Technologies 34401A multimeter gives you the performance you need for fast, accurate bench and system testing. The 34401A provides a combination of resolution, accuracy and speed that rivals DMMs costing many times more. With 6 1/2 digits of resolution, 0.0015% basic 24-hr dcV accuracy and 1,000 readings/s direct to GPIB assure you of results that are accurate, fast, and repeatable.

• 1000 readings/sec. direct to GPIB
• Continuity and Diode Test functions
• Null feature allows you to remove lead resistance and other fixed offsets in your measurements
• Min / Max / Avg readouts
• Direct dB and dBm measurements
• Data Hold capability
• Store up to 512 readings in internal memory
• Voltmeter Complete and External Trigger signals provided so you can synchronise to other instruments
• TTL output indicates Pass/Fail
• TTL output indicates Pass/Fail

การใช้งาน

Industrial, Maintenance & Repair, Test & Measurement

เนื้อหา

Test lead kit with probe, crocodile, and grabber attachments, calibration certificate, test report, and power cord. Also includes CD with: IntuiLink software, IVI and VXI PnP drivers, Quick start tutorial, user's guide, command quick reference, service gu
