พิมพ์หน้า
339 ในสต็อก
อยากได้เพิ่มใช่ไหม
339 จัดส่งใน 3-4 วันทำการ(อังกฤษ สต็อก)
| จำนวน | ราคา (ราคาสินค้าไม่รวม vat) |
|---|---|
| 1+ | THB176.700 |
| 5+ | THB172.070 |
| 10+ | THB170.320 |
ราคาสำหรับสินค้า:Each
ขั้นต่ำ: 1
หลายรายการ: 1
THB176.70
บันทึกของรายการ
เพิ่มไปยังใบยืนยันคำสั่งซื้อ ใบแจ้งหนี้ และใบจัดส่งสินค้าสำหรับคำสั่งซื้อนี้เท่านั้น
ข้อมูลผลิตภัณฑ์
ผู้ผลิตHONEYWELL
หมายเลขชิ้นส่วนของผู้ผลิตV7-6C37E9-036
รหัสสินค้า3439183
Product RangeV7 Series
เอกสารข้อมูลทางเทคนิค
Microswitch TypeMiniature
Microswitch ActuatorStraight Lever
Contact ConfigurationSPST-NC
Switch TerminalsQuick Connect
Contact Current Max15.1A
Contact Voltage DC Nom-
Product RangeV7 Series
Contact Voltage AC Nom277V
Operating Force Max6ozf
ภาพรวมของผลิตภัณฑ์

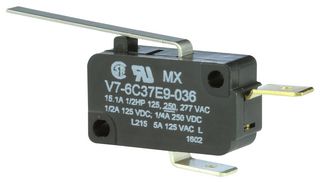

V7-6C37E9-036 is a V7 series miniature SPST-NC chassis mount switch designed for long-term reliability, up to 10 million cycles. The switch incorporates a snap-spring mechanism with more than 60 years of proven service and a high-strength thermoplastic housing for durability. Suitable for vending machines, household appliances, pressure switch assemblies, refrigeration and air-conditioning equipment's.
- Max 6oz to 14oz operating force
- 15A at 125 VAC electrical rating
- SPNC circuitry code
- 85°C, 2.9mm [0.11in]mtg. holes mounting/construction
- 0.250 x 0.032 quick connect spread termination style
- High strength thermoplastic housing, glass-filled PCT high-performance polyester
- Silver, gold plated, gold alloy contact material
- CSA, ENEC, UL approvals
- Up to 10 million cycles mechanical life (cycles)
ข้อมูลจำเพาะทางเทคนิค
Microswitch Type
Miniature
Contact Configuration
SPST-NC
Contact Current Max
15.1A
Product Range
V7 Series
Operating Force Max
6ozf
Microswitch Actuator
Straight Lever
Switch Terminals
Quick Connect
Contact Voltage DC Nom
-
Contact Voltage AC Nom
277V
เอกสารทางเทคนิค (3)
กฎหมายและปัจจัยแวดล้อม
ประเทศต้นกำเนิด:
ประเทศสุดท้ายที่ดำเนินกระบวนการผลิตที่สำคัญประเทศต้นกำเนิด:Mexico
ประเทศสุดท้ายที่ดำเนินกระบวนการผลิตที่สำคัญ
ประเทศสุดท้ายที่ดำเนินกระบวนการผลิตที่สำคัญประเทศต้นกำเนิด:Mexico
ประเทศสุดท้ายที่ดำเนินกระบวนการผลิตที่สำคัญ
หมายเลขพิกัดอัตราภาษี:85365080
US ECCN:EAR99
EU ECCN:NLR
เป็นไปตามข้อกำหนด RoHS:ใช่
RoHS
การใช้สารพาทาเลตตามระเบียบ RoHS:ใช่
RoHS
ดาวน์โหลดหนังสือรับรองมาตรฐานของผลิตภัณฑ์
หนังสือรับรองมาตรฐานของผลิตภัณฑ์
น้ำหนัก (กก.):.009
