934092101

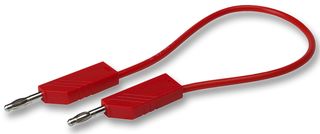

934092101 is a measuring lead. It features either end 4mm diameter plug with caged spring and 4mm diameter socket for tower construction. It has nickel-plated copper beryllium contact spring. Also features highly flexible, double insulated stranded lead, grip and lead shatter-proof. Built in colour indicator for easy identification of insulation damages.

• MLN SIL 100/1 type, red colour, 100cm cable length, 1mm² conductor size
• 4mm pin dimensions, spring-loaded pin type of contact
• LEH-XY cable type, highly flexible lead, high temperature resistant, 259 x 0.07mm wire stranding
• 30VAC / 60VDC rated voltage, CAT I measurement cat. acc. To IEC61010
• 16A rated current (consider derating curve), 22mohm contact resistance
• Brass contact pin material, copper-beryllium contact spring material
• PA housing material, silicone cable material
• UL 94 V-2 housing (basic material)
• Temperature range from -15°C to +70°C
