930318100

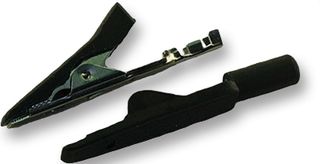

Miniature alligator clip with high strength insulation and nickel-plated brass / bronze jaws. The flat part of the chuck jaws (fine wire section) allows a secure contacting, when thin wires be pinched. It is possible to clamp of flat components (soldering eyes) and wires up to a maximum diameter of 4mm. Crimp connection for 0,25mm² up to 0,5mm² wiring, with following assembly of the bottom insulating part (shim). With suitable tool to crimp (for example with TE use 539680 - 2).

• 2 mm system
• Crocodile clips
• Crimp terminal 0.25 mm² up to 0.5 mm² connection
• 30 VAC / 60 VDC rated voltage (1)
• O (3) measurement cat. acc. to IEC 61010
• 8 A rated current (1)
• PP housing material
• (1) for normal environmental conditions -5°C to +40°C
• (3) without rated measurement category, for other circuits that are not directly connected to mains

การใช้งาน

Test & Measurement, Industrial, Medical
