6069-410-200

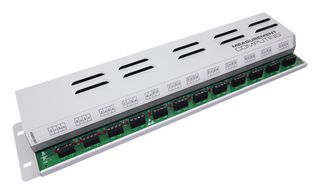

6069-410-200 is a USB-SSR24 24 channel solid-state digital I/O USB device. USB-SSR24 provides mounting locations for 24 SSR modules. SSR digital I/O modules are relay control modules that provide 4000VRMS of optical isolation. Digital input modules sense AC/DC voltages from field devices and convert them to digital TTL signals. Digital output modules use TTL signals to switch and control AC/DC loads. Software support includes DAQami, an optional out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, Linux®, and Python™.

• Mounting rack for 24 SSR module(backplane is divided 2 groups of 8 modules & 2 groups of 4 modules)
• On-board switch to configure the module type for each module group
• On-board switch to configure the control logic polarity (active high or low) for each module group
• On-board switch to configure the power-up state for output modules
• Switch settings can be read back with software
• Independent LEDs at each module position to indicate the on/off status of each module
• USB-SSR24 is powered by an external 9 V regulated power supply
• USB out and power out connections support powering and controlling multiple MCC USB devices
• Rugged enclosure that can mount on a DIN rail or on a bench

เนื้อหา

USB-SSR 24, 9V power supply, Printed insert: DAQami quick start, MCC packaging assembly/foam, etc.

บันทึก

In addition, we have calibration services for this product (Europe only). Visit our calibration service page to see details of what options are available.
