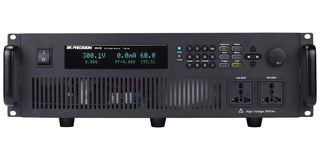

BK9803B

9800B series programmable AC power source and measurement tool. This is suitable for evaluating transformers, TRIACs, SCRs and passive components as well as production, R&D, service and pre-compliance testing applications.

• 0 to 300VRMS voltage, 750VA max power
• Output frequency adjustable from 45Hz to 500Hz
• Displays VRMS, IRMS, Ipeak, frequency, PF, apparent power, true power and elapsed output time
• Adjustable phase angle control
• Programmable voltage and frequency limit settings
• Built-in PLD and dimmer simulation, voltage and frequency sweep mode
• 10 user-defined programs with up to 100 programmable steps each
• BNC I/O for external triggering, output status indication/control and synchronization
• Save and recall up to 100 instrument settings
• OVP/OCP/OPP/OTP protection modes and key lock function

เนื้อหา

AC power source, Unterminated power cord with input connector, Rackmount ears & handles, Instruction manual, Test report, Certificate of calibration.
