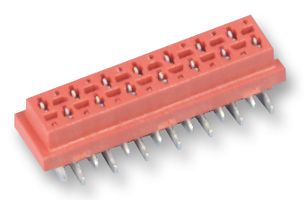

8-188275-2

The 8-188275-2 is a 12-way 2-row Female-on-board Ribbon Cable Receptacle Connector with tin over nickel plated phosphor bronze contacts and tin over nickel plated solder tail. This Micro-MaTch series connector comes with red PA housing and surface mount termination. The Micro-MaTch contact helps prevent fretting corrosion, the traditional failure mode in tin-plated connections. Relative movements caused by vibrations/thermal expansion between male and female contacts are absorbed by an additional positioning spring in the female part. By preventing movements on the contact spot, a gas tight connection can make the Micro-MaTch contact spring system fretting corrosion resistant.

• UL94V-0 Flammability rating
• 1A Contact current rating
• 1000MΩ Insulation resistance
• 100VAC Voltage rating
• -40 to +105°C Operating temperature range

การใช้งาน

Industrial
