| ผู้ผลิต | ALPHA WIRE |
|---|---|
| หมายเลขชิ้นส่วนของผู้ผลิต | 1214C SL005สำเนา |
| ระยะเวลานำส่งมาตรฐานของผู้ผลิต | 11 สัปดาห์ |
| รหัสสินค้า | 1619571 |
| หมายเลขชิ้นส่วนของคุณ | |
| เอกสารข้อมูลทางเทคนิค |
6 คุณสามารถจองสินค้าได้ทันที
| จำนวน | ราคา (ราคาสินค้าไม่รวม vat) |
|---|---|
| 1+ | THB8,566.860 |
| 5+ | THB8,322.190 |
ข้อมูลผลิตภัณฑ์
| ผู้ผลิต | ALPHA WIRE |
|---|---|
| หมายเลขชิ้นส่วนของผู้ผลิต | 1214C SL005สำเนา |
| ระยะเวลานำส่งมาตรฐานของผู้ผลิต | 11 สัปดาห์ |
| รหัสสินค้า | 1619571 |
| เอกสารข้อมูลทางเทคนิค | |
| Cable Shielding | Screened |
| No. of Cores | 4Core |
| Wire Gauge | 24AWG |
| Conductor Area CSA | 0.23mm² |
| Reel Length (Imperial) | 100ft |
| Reel Length (Metric) | 30.5m |
| Jacket Colour | Grey |
| No. of Max Strands x Strand Size | 7 x 32AWG |
| Conductor Material | Tinned Copper |
| Jacket Material | PVC |
| External Diameter | 4.7mm |
| Voltage Rating | 300V |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
ภาพรวมของผลิตภัณฑ์

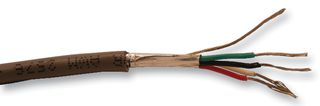

The 1214C SL005 is a 100ft 4-conductor 24AWG Shielded Cable with stranded tinned copper conductor and PVC insulation. This multi-conductor cable comes with a slate PVC jacket and aluminium/Mylar tape shield. The cable meets special needs, such as low capacitance for extended transmission of digital signals, such as the extra flexibility of rubber insulation and jacket or excellent shielding for electrically noisy environments.
- CPR: Not Yet Qualified
- 17.6lbs Maximum pull tension
- 45pf/ft at 1kHz Nominal conductor to conductor capacitance
- 81pf/ft at 1kHz Nominal ground capacitance
- 0.19µH/ft Nominal inductance
- 26Ω/1000ft at 20°C Nominal conductor DC resistance (DCR)
- 19.6Ω/1000ft at 20°C Nominal OA shield DC resistance (DCR)
การใช้งาน
Audio, Communications & Networking, Computers & Computer Peripherals, Sensing & Instrumentation, Security, Automation & Process Control, Consumer Electronics, Portable Devices
ข้อมูลจำเพาะทางเทคนิค
| Cable Shielding | Screened |
|---|---|
| Wire Gauge | 24AWG |
| Reel Length (Imperial) | 100ft |
| Jacket Colour | Grey |
| Conductor Material | Tinned Copper |
| External Diameter | 4.7mm |
| Product Range | - |
| No. of Cores | 4Core |
|---|---|
| Conductor Area CSA | 0.23mm² |
| Reel Length (Metric) | 30.5m |
| No. of Max Strands x Strand Size | 7 x 32AWG |
| Jacket Material | PVC |
| Voltage Rating | 300V |
| SVHC | No SVHC (04-Feb-2026) |
เอกสารทางเทคนิค (1)
ผลิตภัณฑ์ที่เกี่ยวข้อง
พบผลิตภัณฑ์จำนวน8
กฎหมายและปัจจัยแวดล้อม
| ประเทศต้นกำเนิด: ประเทศสุดท้ายที่ดำเนินกระบวนการผลิตที่สำคัญประเทศต้นกำเนิด: | United States ประเทศสุดท้ายที่ดำเนินกระบวนการผลิตที่สำคัญ |
|---|---|
| หมายเลขพิกัดอัตราภาษี: | 85444995 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| เป็นไปตามข้อกำหนด RoHS: | ใช่ RoHS |
| การใช้สารพาทาเลตตามระเบียบ RoHS: | ใช่ RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| ดาวน์โหลดหนังสือรับรองมาตรฐานของผลิตภัณฑ์ | หนังสือรับรองมาตรฐานของผลิตภัณฑ์ |
| น้ำหนัก (กก.): | .8568 |
