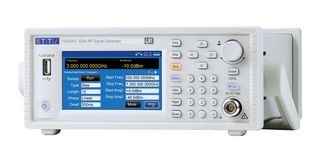

TGR2053

TGR2053 is a RF signal generator. This high-performance RF generator provides high-frequency accuracy and stability, large signal amplitude range, low phase noise and flexible analogue and digital modulation capabilities making it ideal for development, test, and service work. Advanced remote control accommodates sophisticated new automated systems and compatibility with Aim-TTI's previous RF instruments enables incorporation into existing systems.

• 150KHz to 3GHz frequency range, frequency setting resolution of 10Hz at up to 3GHz
• Amplitude range of -127dBm to +13dBm, 0.1dBm amplitude setting resolution
• High signal purity, phase noise <-117dBc/Hz (typical) at 1GHz output and 10KHz offset
• 1ppm frequency accuracy, 5ms sweep settling time, user selectable low spur mode setting
• Internal or external analogue modulations (AM, FM, PM)
• Internal or external digital modulations - ASK, OOK, FSK, 3FSK, 4FSK, GFSK, MSK, GMSK, HMSK & PSK
• Versatile digital modulation modes- continuous or triggered
• Internal DDS baseband generator provided as logic LF o/p, modulation waveform o/p on the rear panel
• Fast amplitude and/or frequency sweeps with comprehensive triggering
• Internal waveforms include: sine, square, ramp, triangle, PRBS and user-defined pattern
• Simple and easy to operate with the colour and touch display
• Programmable via USB, LAN (LXI) and GPIB (optional), SCPI compatible
