P2036 300 MHZ 10:1 PASSIVE PROBE

P2036 (dual pack) is a 10:1 miniature probe for oscilloscopes with up to 300MHz bandwidth. The entire probe core is made of a high-quality CeramCore™ ceramic hybrid. Pure coaxial design and laser-trimmed resistors ensure highest signal fidelity along the signal path, offering high bandwidth and fast rise times for accurate impulse measurements. With a maximum input voltage of 300 V CAT II, these probes are equally suitable in service and development environments. The read-out BNC connector is automatically recognized as a 10:1 divider by scopes such as the PicoScope 6000E Series that feature a sense ring.

• Voltage coefficient 0.00025%/V
• Probe risetime 1ns
• Low input capacitance of 9.5pF
• Cable length 1.3m
• Probe tip diameter 2.5mm

เนื้อหา

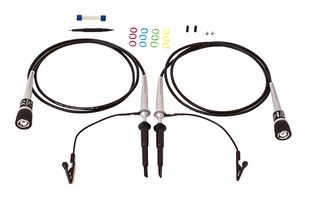

2 x P2036 300MHz passive probes, 1 x coding rings (set) 3x4 colours, 2 x ground lead 15cm, 2 x ground spring 2.5mm, 2 x insulating cap 2.5mm, 1 x sprung hook 2.5mm, 1 x trim tool, 2 x solid tip CuBe 0.5mm, 2 x spring tip gold plated 0.5mm.
