AL6-SMSFBW-9

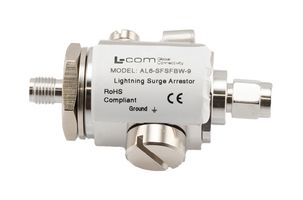

AL6-SMSFBW-9 is a type SMA F/M, DC - 6GHz RF surge protector. This RF surge protector (also known as lightning arrestor) utilizes a gas discharge tube design to protect critical hardware while maintaining the RF performance. This RF surge protector component is manufactured in a coaxial in-line design with wide operating frequency range. Applications include cellular, land mobile radio, VHF/UHF, wireless LAN, wireless cable (MMDS), GPS.

• Broadband performance from DC to 5.8GHz
• Repetitive lightning strike capability, bi-directional protection
• Replaceable gas tube for installation longevity
• Robust brass construction
• 50 ohm typical impedance, 1.5:1 maximum VSWR
• 0.6dB maximum insertion loss, 60VDC maximum operating voltage
• 10KA maximum surge current
• Length is 53.34mm, width/diameter is 22.86mm, height is 30.48mm
• Brass tri-metal housing material and plating, -40°C to +85°C operating temperature range
• SMA female input connector, SMA male output connector
