KITA2GTC375ARDSBTOBO1

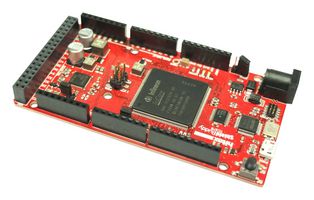

KITA2GTC375ARDSBTOBO1 is a ShieldBuddyTC375 – AURIX™ powered Arduino™ UNO R3 hardware compatible platform". This is the world’s smallest AURIX™ development board. The Hitex ShieldBuddyTC375 is fitted with the Infineon TC375 32bit multicore processor on a board following the Arduino™ standard making it compatible with many of the application shields that are available. Evaluation licenses for a complete set of development tools are available which makes this kit ideal for getting started on a high end real time embedded industrial or automotive application as well as students and hobbyists.

• Low cost AURIX™ TC375 board for professional and hobby use
• Uses Arduino™ Due/Mega2560 form factor and IO connector pin allocation
• ShieldBuddy AURIX™ TC375 with on-board TLF35584 power supply and safety monitor
• Allows instant access for new and prospective AURIX users to hundreds of shields
• Supplied with basic drivers for DS-ADC, SAR, GTM, GPT, CCU6, ASC, LIN, SPI, QSPI, Ethernet
• Direct USB debug interface
• Development tools based on HighTec Free AURIX™ Toolchain and Arduino™ Processing IDE
• USB or 9-12V power supply

คำเตือน

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
