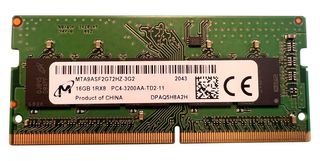

MTA9ASF2G72HZ-3G2F1

MTA9ASF2G72HZ-3G2F1 is a DDR4 SDRAM SODIMM.

• Fast data transfer rate: PC4-3200, 0°C ≤ TOPER ≤ 95°C commercial operating temperature
• VDD = 1.20V (NOM), VPP = 2.5V (NOM), VDDSPD = 2.5V (NOM)
• Supports ECC error detection and correction, gold edge contacts
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR), data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration, single-rank
• On-board I2C temperature sensor with integrated serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each, selectable BC4 or BL8 on-the-fly (OTF)
• 260-pin, small-outline dual in-line memory module (SODIMM)
• 0.625ns at CL = 22 (DDR4-3200) frequency/CAS latency
