784972-01

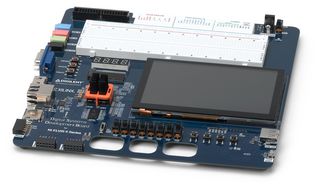

784972-01 is a Digilent digital electronics board for NI ELVIS III. It provides a hands-on platform for teaching power electronics and power management. It also provides experiments for system-level concepts of power electronics and energy conversion. The board was designed around the Xilinx Zynq®-7000 family, all programmable system-on-chip (SoC) architecture. This ensures there is plenty of power for students to learn a wide range of topics, ranging from simple combination logic to advanced digital systems and control.

• Digital electronics teaching platform, programmable with Multisim, LabVIEW, and Vivado
• Integrates with NI ELVIS II/II+, Zynq XC7Z020 FPGA
• 8 LEDs, 8 slide switches, 4 push buttons
• Expansion connector, capacitive touchscreen, 3 PMOD connectors
• 10/100/1000 full duplex Ethernet
• 128Mb, max. 94MHz quad SPI flash
• 50MHz, class 4 or better micro SD card
• 4-digit, common cathode7-segment display
• 5inch, 800 × 400 pixel capacitive touchscreen
