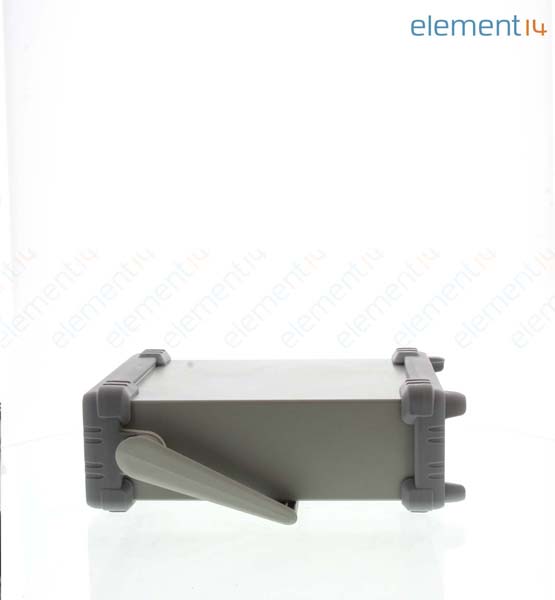

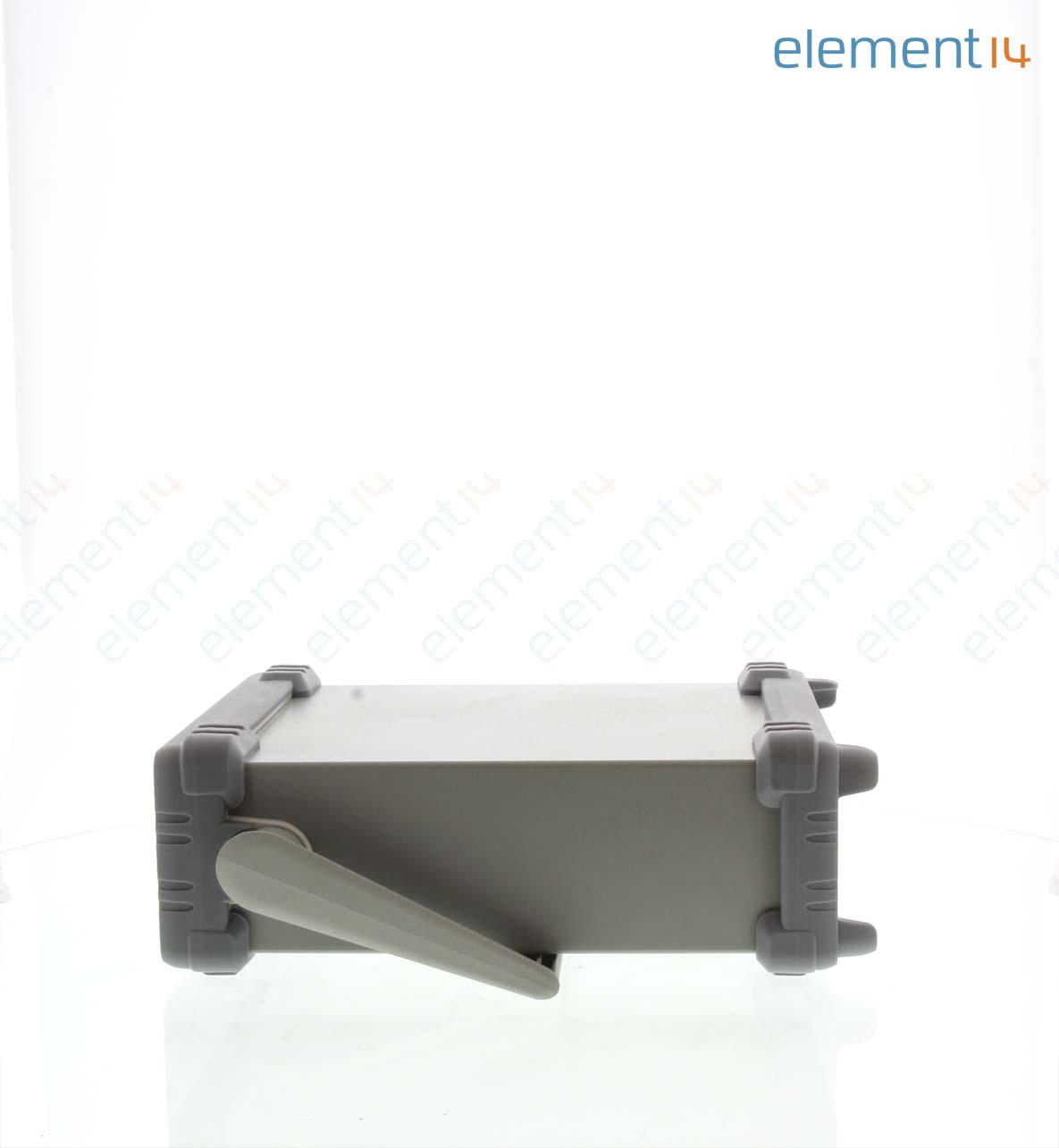

GDM-8341

Bench Digital Multimeter, GDM-8000 Series, 50000 Count, True RMS, Auto, Manual Range, 1 kV, 10 A

GW INSTEK GDM-8341
GW INSTEK GDM-8341
360°
×

ภาพใช้เพื่อวัตถุประสงค์เพื่อแสดงตัวอย่างเท่านั้น โปรดดูรายละเอียดของผลิตภัณฑ์

ผู้ผลิต:
GW INSTEK GW INSTEK
หมายเลขชิ้นส่วนของผู้ผลิต:
GDM-8341
รหัสสินค้า
2460248
ประเภทผลิตภัณฑ์
GDM-834x Series
เอกสารข้อมูลทางเทคนิค:
GDM-8341   แผ่นข้อมูล
ดูเอกสารทางเทคนิคทั้งหมด

ข้อมูลผลิตภัณฑ์

ต้องการดูผลิตภัณฑ์ที่คล้ายกันหรือไม่ เพียงเลือกคุณสมบัติที่คุณต้องการด้านล่างแล้วกดปุ่ม ×


:
4.75

:
USB

:
10A

:
750V

:
50Mohm

:
GDM-834x Series

:
10A

:
1kV

:
3 Years

:
AC/DC Current, AC/DC Voltage, Capacitance, Continuity, Diode, Frequency, Resistance

:
-

ค้นหาผลิตภัณฑ์ที่คล้ายกัน เลือกและปรับเปลี่ยนแอตทริบิวต์ด้านบนเพื่อค้นหาผลิตภัณฑ์ที่คล้ายกัน

เอกสารทางเทคนิค (2)

ภาพรวมของผลิตภัณฑ์

The GDM-8341 is a Dual Measurement Multimeter with exceptional features such as 50,000 counts, VFD dual-display, 0.02% basic DC voltage accuracy and a USB protocol connector to provide users with measurement precision, lucid data observation and the convenience to connect with the personal computer. The GDM-834x series not only supports the fundamental measurement items provided by general multimeters, but also equips with capacitance measurement functions. Furthermore, this series also provides many auxiliary functions to meet the measurement requirements for manufacturing process tests, educational experiments and testing facilities. With respect to storing and retrieving data, this series has two methods to offers first, the USB flash drive storage function - operating alone without connecting with a computer and second, USB interface and optional GPIB interface for automatic measurement system users to conveniently save and retrieve data.
  • 50,000 counts, VFD display
  • Dual measurement/dual display
  • Selectable measurement speeds, the maximum - 40 readings/s for DCV
  • Basic precision of DC voltage - 0.02%
  • Auto/manual ranging
  • True RMS (AC, AC+DC) measurements
  • 11 Different measurement functions
  • Maximum/minimum, REL, MX+B, 1/X, Ref%, Compare, Hold, dB and dBm
  • Standard USB device interface to connect with a computer
  • Convenient USB flash drive storage function
  • Command compatibility and free software-remote control and data retrieving

การใช้งาน

Test & Measurement, Hobby & Education

เชิงอรรถ

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
ขายดี

92 ในสต็อก อยากได้เพิ่มใช่ไหม

10 สิงคโปร์ สต็อกสินค้าพร้อมจัดส่งถึงภายใน 1-2 วันทำการ
82 อังกฤษ สต็อกสินค้าพร้อมจัดส่งถึงภายใน 3-4 วันทำการ

เนื่องจากเงื่อนไขทางการตลาด ระยะเวลาการจัดส่งเป็นเพียงแนวทางเบื้องต้นเท่านั้นและอาจมีการเปลี่ยนแปลงแบบกะทันหัน

THB19,726.18

ไม่สามารถแสดงการกำหนดราคา โปรด ติดต่อฝ่ายบริการลูกค้า

ราคาสำหรับสินค้า:
อันละ
หลายรายการ: 1 ขั้นต่ำ: 1
  • 1+
จำนวน ราคา ราคาสำหรับสินค้าคุณ


1+ THB19,726.18
