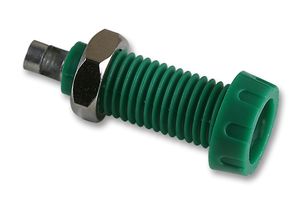

563-0400-01

The 563-0400-01 is a 4mm panel-mount Socket with solder bucket connection. It has green polypropylene insulant, silver-plated BS2874 brass pin and nut. Rigid panel mounting socket retained in place by a nut, which accepts 4mm diameter plugs and it is suitable for panel up to 13.5mm thick.

• Green 4mm Panel Socket - Solder Bucket Connection
• Panel mounting socket retained in place by a nut, which accepts 4mm diameter plugs
• Suitable for panels up to 13.5mm thick
• Connection via a solder bucket
• Insulant: Polypropylene
• Pin: Brass BS2874 Silver Plated
• Nut: Brass BS2874 Nickel Plated
• Current Rating: 10 Amps
• Nominal Working Voltage: 250V RMS
• Contact Resistance: 10mΩ
• Maximum Temperature RTI: +147°C
• Minimum Temperature: -20°
• Recommended Temperature: 10A @ 55°C
• Voltage Breakdown: 5000V
• Conductor Size: 1.5mm²
• Fixing Torque: 0.4Nm

การใช้งาน

Test & Measurement
